Features

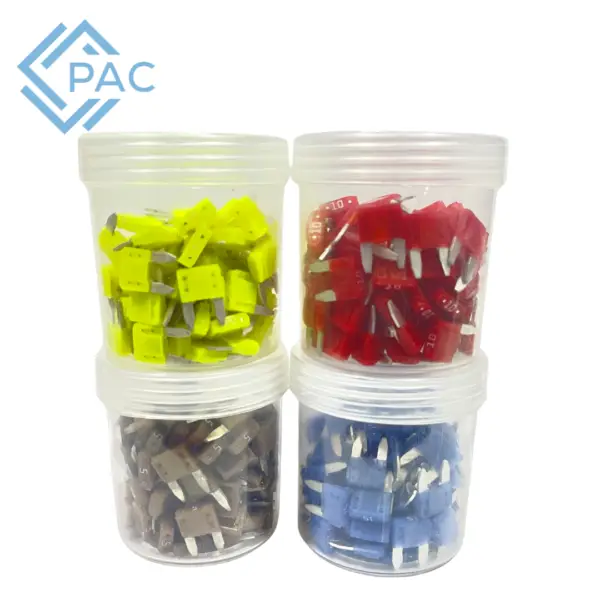

- Fast-acting mini fuse
- Available with ratings of 7.5 A | 10 A | 15 A | 20 A
- Interrupting rating of 1 kA at 32 V dc
- Tin- and silver-plated zinc alloy terminals
- Operate at up to 125 ℃
- Tin-plated terminals reach 130 ℃ and silver-plated terminals can reach 150 ℃ at contact points
- PA66 housing with UL flammability rating of V-2
- Net weight 0.57 g ±5 % per fuse
- Comply with SAE J2077 and ISO 8820-3; fuses with silver-plated terminals are Recognized as UL 248-1 Special Purpose Fuses
- RoHS compliant
Benefits Of Mini Fuse
- Color coding indicates ampere rating
- See-through housings make it easier to see when fuses blow
- High-contrast ampere rating stamps aid identification
- Checkpoints on top make it possible to measure resistance without removing the fuse
Applications Of Mini Fuse
- Cars
- Trucks
- Offroad vehicles
- 2 Wheelers & 3 Wheelers
Specifications Of Mini Fuse
| Voltage Rating: | 32 VDC |
| Interrupting Rating : | 1000A @ 32 VDC * |
| Recommended Environmental Temperature: | -40˚C to +125˚C |
| Terminals Material: | Silver plated / Tin plated zinc alloy |
| Housing Material: | PA66 (U.L. 94 Flammability rating – V2) |
| Net Weight Per Fuse: | 0.57±5% gr |
| Complies with: | Ag plated: SAE J2077, ISO 8820-3, UL 248 Special Purpose Fuses Sn plated: SAE J2077, ISO 8820-3 not UL recognized |
*Tin plating’s temperature limit is ≈130˚C. Silver plating allows up to 150˚C at the terminal interface
