Features

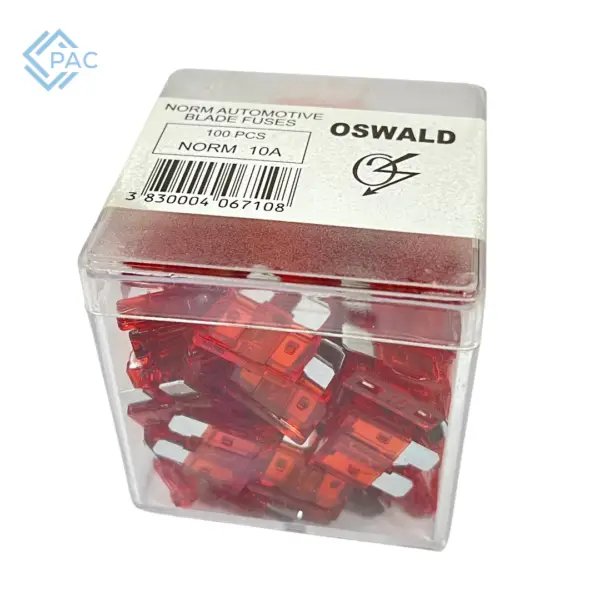

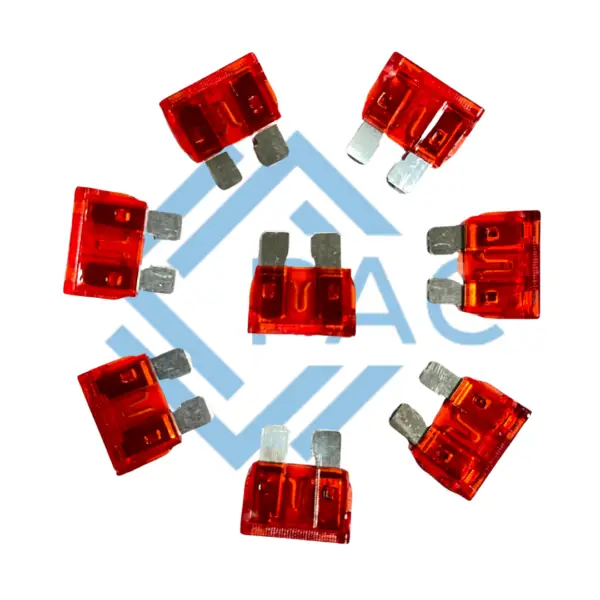

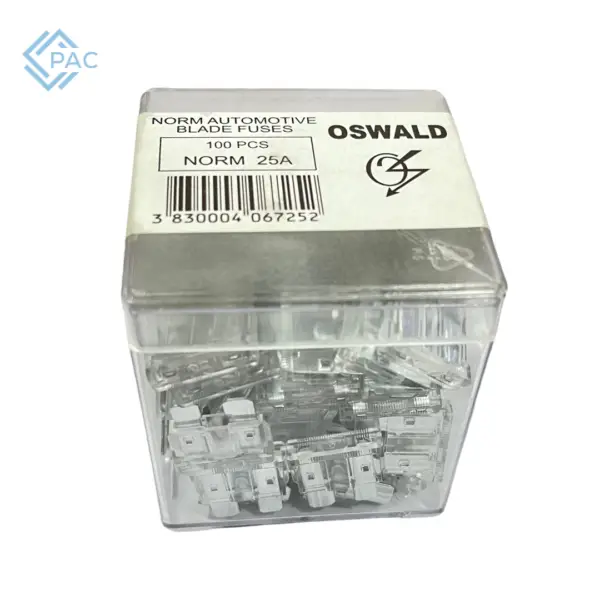

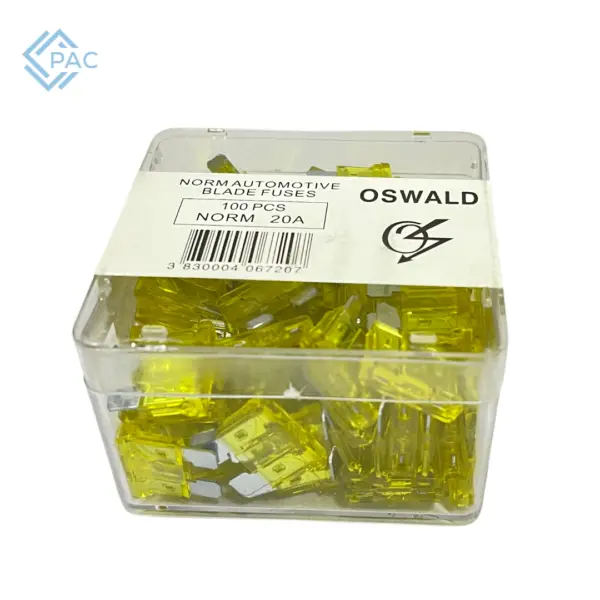

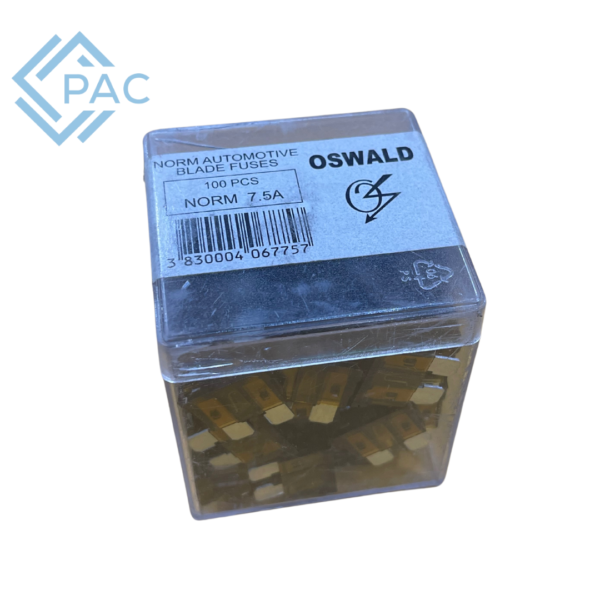

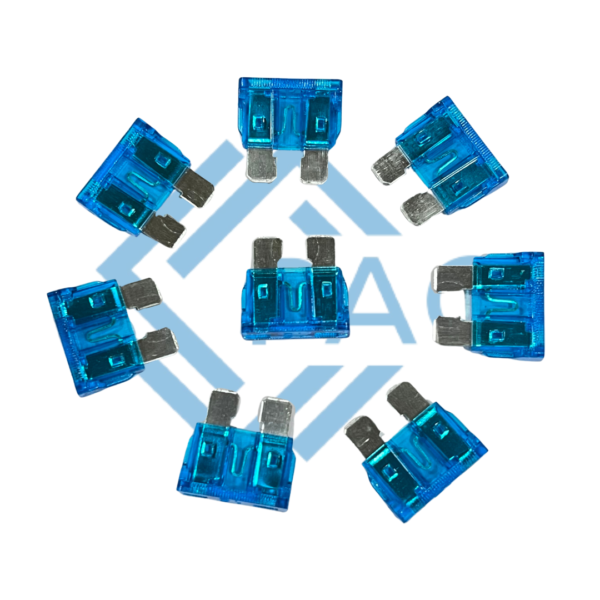

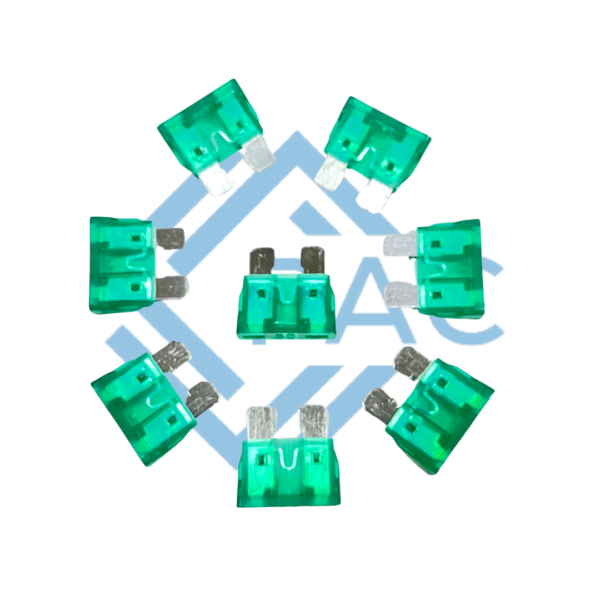

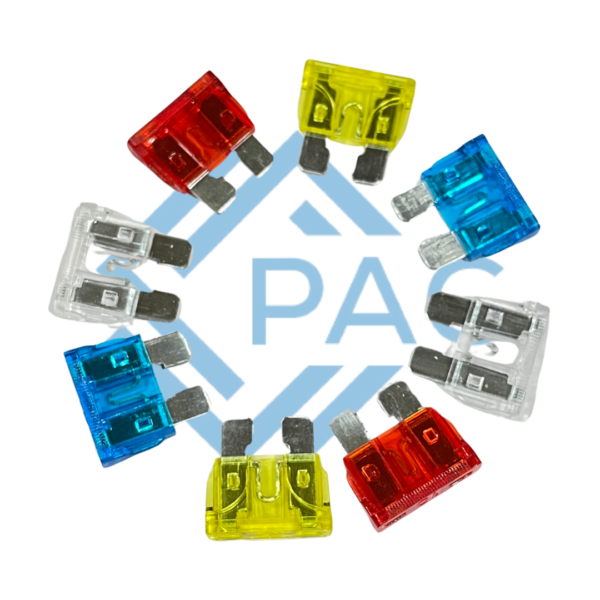

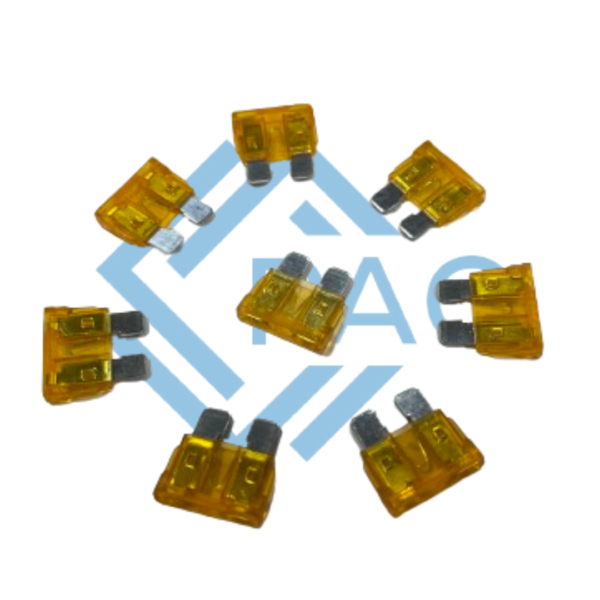

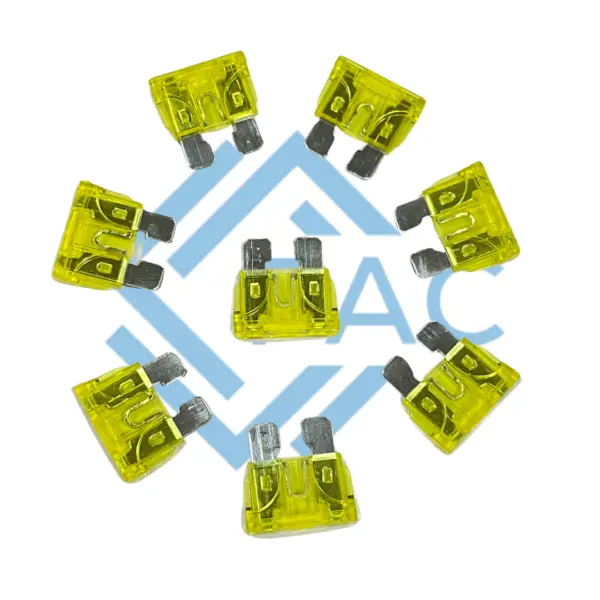

- Fast-acting Blade Fuse
- Available with ratings of 10 A | 15 A | 20 A | 25 A | 30 A
- Interrupting rating of 1 kA at 32 V dc
- Silver- or tin-plated terminals
- Operate at up to 125 ℃
- Silver-plated terminals can reach 150 ℃ at contact
- Net weight 1.4 g ±5 % per fuse
- UL 94 flammability rating of V-2
- RoHS compliant and certified lead-free
Benefits Of Blade Fuse
- Color coding indicates ampere rating
- See-through housing makes it easier to see when fuse blows
- Checkpoints on top make it possible to measure resistance without removing the fuse
- High-contrast ampere stamps aid identification
Applications Of Blade Fuse
- Cars and SUVs
- Trucks
- Offroad vehicles
- 2 Wheelers & 3 Wheelers
- Fuse Box Wiring
Specifications Of Fuse
| Voltage Rating | 32 V dc Interrupting Rating: 1000 A @ 32 V dc |
| Recommended Environmental Temperature: | –40 ˚C to +125 ˚C (ATOF® ) |
| Terminals Material: | Tin- or silver-plated* |
| Housing Material: | PA66 (UL 94 Flammability rating of V-2) |
| Net Weight Per Fuse: | 1.4 g ± 5 % |
| Comply With: | SAE J1284 and ISO 8820-3 |
| UL Listed: | File AU1410 |
| : CSA Certified: | File No. 29862 |
*Tin plating’s temperature limit is ≈130 ˚C. Silver plating allows up to 150 ˚C at the terminal interface.
